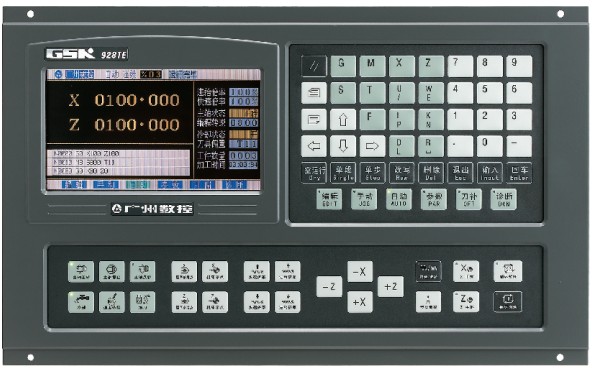

GSK 928TEⅡTurning Machine CNC System has stable performances and many functions, matched with our AC servo drive unit to compose the high performance CNC system. The system can match other drive units according to the user's requirements.
1.CPLD hardware interpolation, μm precision, and max. rapid traverse speed 15m/min;
2.Acceleration/deceleration characteristics, auxiliary function logic are set by the user;
3.Inch/metric single/multi thread machining, rigid tapping function;
4.480×234TFT color display, tool path imitation;
5.Chinese/English operator panel, standard ISO code edit in full screen;
6.Match with AC servo to get the high cost-performance, match with the medium CNC turning machine;

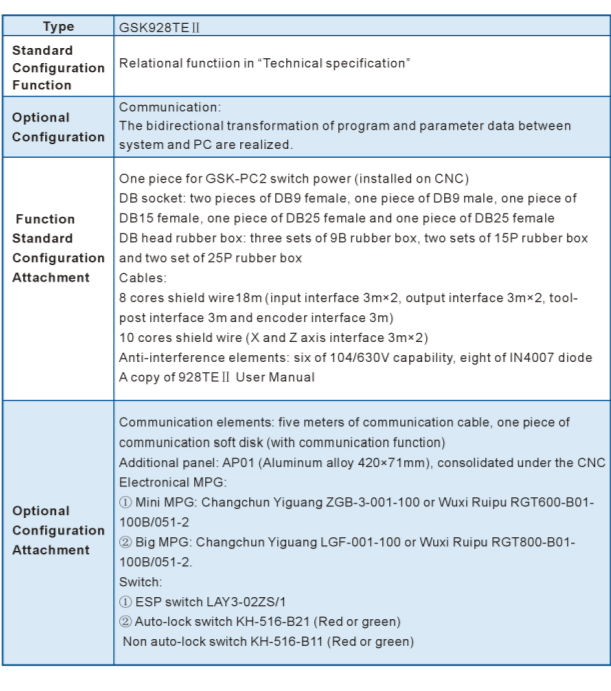

Ordering Type：

Configuration：

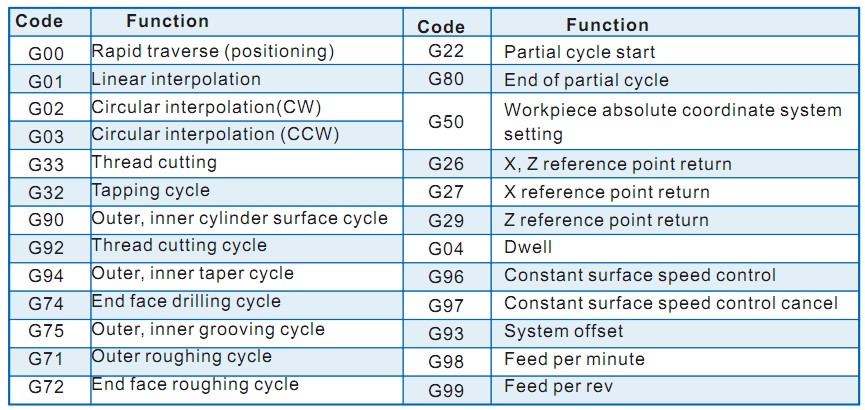

code list：
