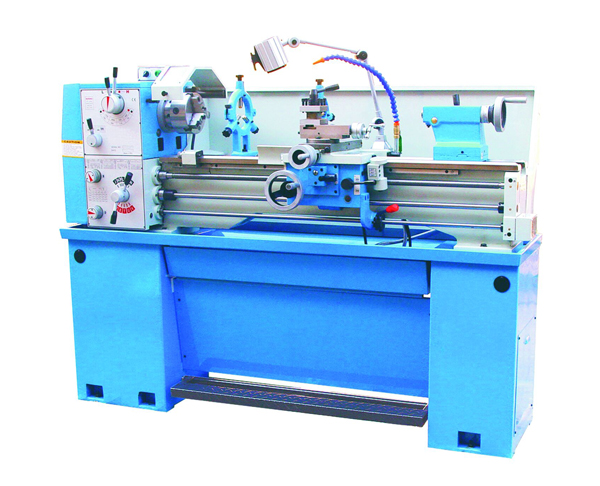

SP2112-IL
Specifications
Accessories
Items
Specification
Models
SP2112-IL SP2112-IIL
Swing over bed
330mm(13") 360mm(14")
Swing over cross slide
198mm(7-25/32") 215mm(8-1/6")
Swing in gap diameter
476mm(18-3/4") 506mm(9-1/3")
Swing in length of gap
210mm(8-1/4")
Center height
165mm(6-1/2") 179mm
Admits between
500mm(22")750mm(30") 1000mm(40")
Bed width
187mm(7-3/8")
Spindle bore
38mm(1-1/2")&51mm(2")
Spindle Taper
MT5
Taper in sleeve
NO.3 Morse
Speeds number
8
Speeds range
70-2000r.p.m.
Cross slide travel
170mm
Diameter of Lead screw/pitch
22mm/3mm
Cutting tool max section
16mm×16mm(5/8"×5/8")
Range of inch thread
31/2-80T.P.I/36
Range of metric pitches
0.45-10mm/27
Range of module thread
0.25-5MP/20
Range of diametric threads
7-160DP/32
Cross slide travel
170mm
Top slide travel
90mm
Motor power
1.5KW
Machine weight
622/662kg
Number
Manual lathe Accessories
SM001
Face plate
SM002
Clamping kit for face plate
SM003
Steady rest
SM004
Follow rest
SM005
3-Jaw chuck
SM006
4-Jaw chuck
SM007
Dead center
SM008
Rolling center
SM009
Drill chuck and drill arbor
SM0010
Tail stokc chuk
SM0011
刀架护罩
SM0012
2 axis DRCD
SM0013
3-axis DRCD
SM0014
Cutter 11 pcs
SM0015
Tin coated cutter 9 pcs set
SM0016
Quick change toolpost
SM0017
Mill chuck set
SM0018
Stand
SM0020
Oil tray
SM0021
work light
