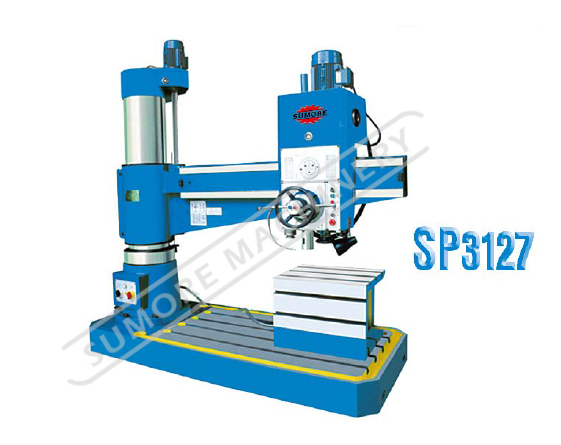

SP3127

Model: SP3127
Max. Drilling diameter: 50mm
Distance between spindle axis and column:350-1600mm
Distance spindle nose and table surface:320-1220mm
Rocker arm lifting distance:580mm
Rocker arm lifting speed:0.02m/s
Spindle travel:315mm
Spindle taper:MT5
Range of spindle speeds:25-2000r/min
Number of spindle speeds:16 steps
Range of spindle feeds:0.04-3.20mm/r
The maximum torque of the spindle:500N.M
Spindle maximum feed resistance: 18000N
Table size: 630*500mm
The spindle box of horizontal moving distance: 1250mm
Spindle motor power:4 kw
Hydraulic damping motor power: 0.75kw
Cooling pump motor power: 0.09kw
Arm lift motor pwer: 1.5kw
Machine weight: 3500kg
Overall dimension: 2500*1070*2840mm

Number	Drilling machine Accessories
SM10015	Laser
SM10016	Chuck guard
SM10017	Front switch
SM10018	Keyless drill chuck
SM10019	Key type drill chuck
SM10020	Vice
