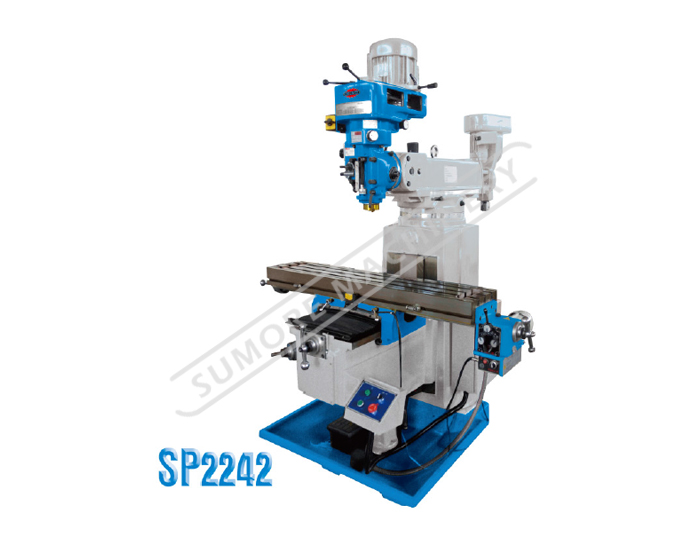

SP2242-上海舒茂实业有限公司

Model No.	SP2242
Table size	2541270/3051370
Longitudinal travel	850mm
Cross travel	400mm
Vertical travel	420mm
T-slot no. and size	3*16
Ram travel	470mm
Distance from spindle nose to table surface	0~420mm
Spindle hole taper	Standard:R8 Opiotnal:ISO30/ISO40
Spindle travel	127mm
Spindle speed	Standard 16 steps 50HZ: 80~5440 Optional stepless 65~4200
Main motor	2.25Kw or 3.75Kw
Diameter of quill	95mm
Distance from spindle to table	90~370mm
Distance from horizontal spindle to table	0~280mm
Distance from spindle to column	200~700mm
Spindle speeds(16 step)80~5440 r.p.m(V)	40~1300r.p.m(H)
Spindle travel	127mm
Feeding of quill	(3 step)0.04 0.08 015
Swivel	90°
Head tilting	45°
Dimension of package	1616/176615502080mm
Net weight	1420/1650kg
Gross weight	1380/1590kg
