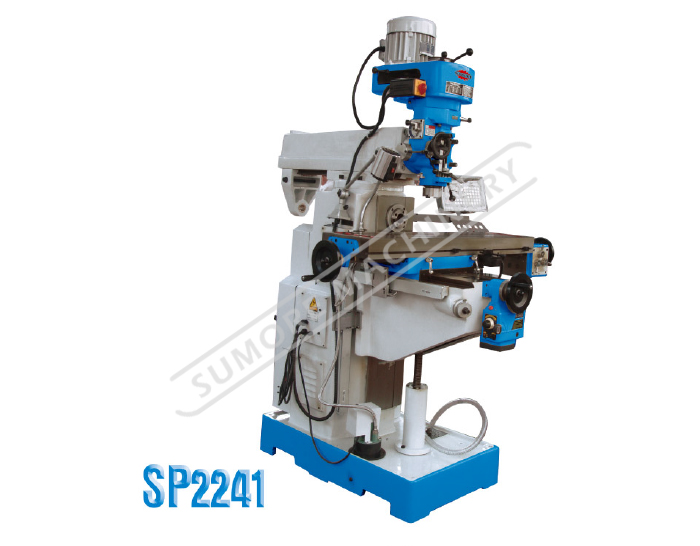

SP2241-上海舒茂实业有限公司

Model No.	SP2241
Diameter of quill	95mm
Distance from spindle to table	90~370mm
Distance from horizontal spindle to table	0~280mm
Distance from spindle to column	200~700mm
Spindle speeds(16 step)80~5440 r.p.m(V)	40~1300r.p.m(H)
Spindle travel	127mm
Feeding of quill	(3 step)0.04 0.08 015
Max. drilling capacity of auto-feeding	Φ10
Head movement	+45°
Table size	1270*280mm
Table travel(horizontal/Cross/Vertical)	800/350/400mm
Max. weight of work piece	200kg
T-slot number/width/distance	3/14mm/60mm
Milling head moving(vertical)	Dovetail rail
Cross slide way	Dovetail rail
Longitudinal slide way	Dovetail rail
Mail motor	3HP(V) 2.2KW (H)
Overall dimension	160014502100mm
N.W/G.W	1250/1350kg
