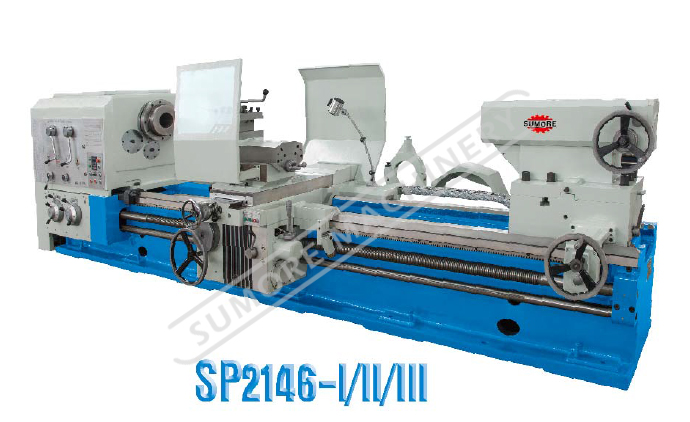

SP2146-上海舒茂实业有限公司

Model	SP2146-I	SP2146-II	SP2146-iii
Max. swing over bed	800mm	1000mm	1250mm
Max. swing over cross slide	480mm	650mm	850mm
Distance between centers	1500~12000mm
Max. work piece weight	3T
Bed width	660mm
Spindle hole	Φ105mm
Spindle nose	C-11 or D-11
Spindle taper	Metric Φ120mm 1:20
Spindle speeds(Number)	6-500rpm
Longitudinal and transverse feeding number range	56; 0.1-12mm/r
Screw pitch	12
Metric threads range(kinds)	1-120mm(44 kinds)
Inch threads range(kinds)	14-1mm TPI (26 kinds)
Module threads range(kinds)	45; M0.5-M60MM
Diametral threads range(kinds)	24 28-1mm
Slide fast moving speed	4000mm/min
Max cross travel of turret	480mm
Max travel of compound slide	200mm
Tool section size	32*32mm
